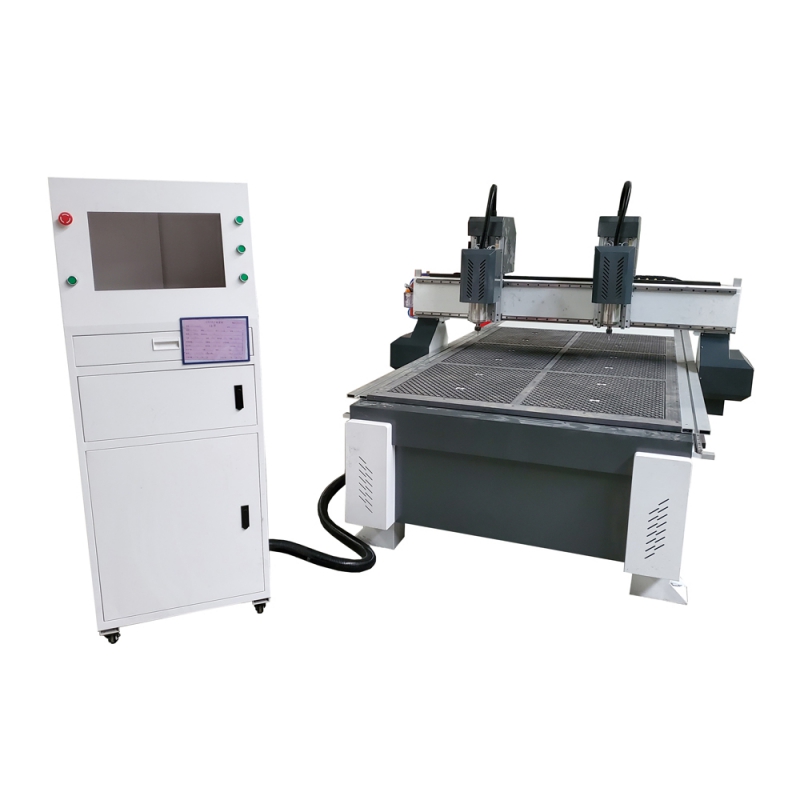

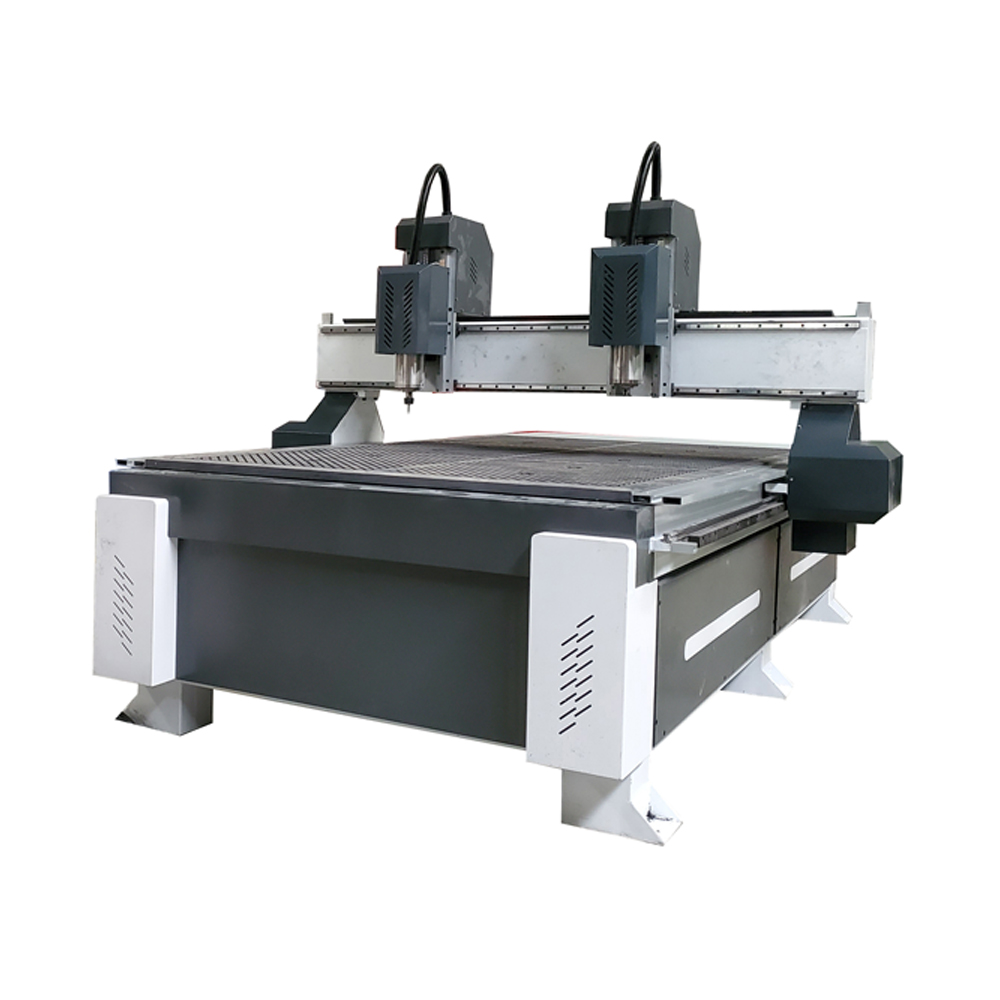

Wood cnc router DS-1325-2

  • Working area: 1300x2500mm
  • Spindle: 3.2kw water cooling spindle x2
  • control system: DSP/Ncstudio control system
  • Guide rail: Taiwan HIWIN guide rail
  • Software: Ucancam / ArtCam/TYPE3
  • Motor: Stepper Motor 450B
  • Machine bed: Welded with thickness steel tube
  • Transmission: Helical Rack Pinion
  • Table: Vacuum table
  • Working voltage: 220V/380V
  • Traveling speed: 15-20m/min
  • Working speed: 10-15m/min
  • Application: wood working
  • Inquiry

Product Description



Introduction



This machine is with multi-heads. It is suitable for relief. The working availability is more higher. It can produce several workpiece.

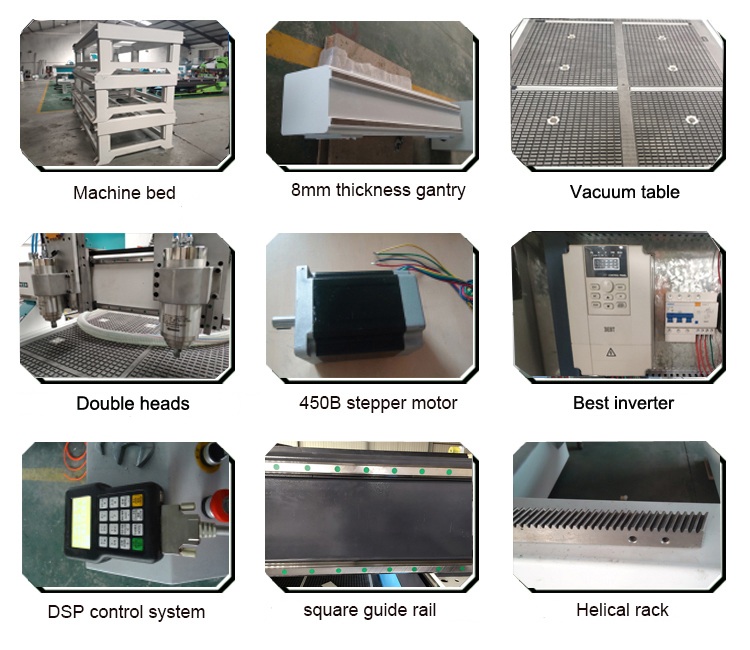

1.T-slot table can fix materials of different sizes effectively.Vacuum table is for option.

2.Taiwan TBI balls screws, HIWIN square guide rails, high precision, large load bearing and stable running.

3.Gantry-traveling, stronger, reliable and stable, non-deforming, high locating accuracy.

4.Y axis use servo/stepper motor drive, select matching to ensure smooth movement.

5. DSP control system, with U disk available and not need computer ( can be completelyoff-line operation. ), provides high independence and great convenience for operation.


1325 独立二 (20).jpg







Applications


   1.Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

   2.The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.

   3.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks,

     stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
   4.Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper,

      aluminum plate engraving and milling process.
