  • Wood cnc router DS-1325STC
  • Wood cnc router DS-1325STC
  • Wood cnc router DS-1325STC
  • Wood cnc router DS-1325STC

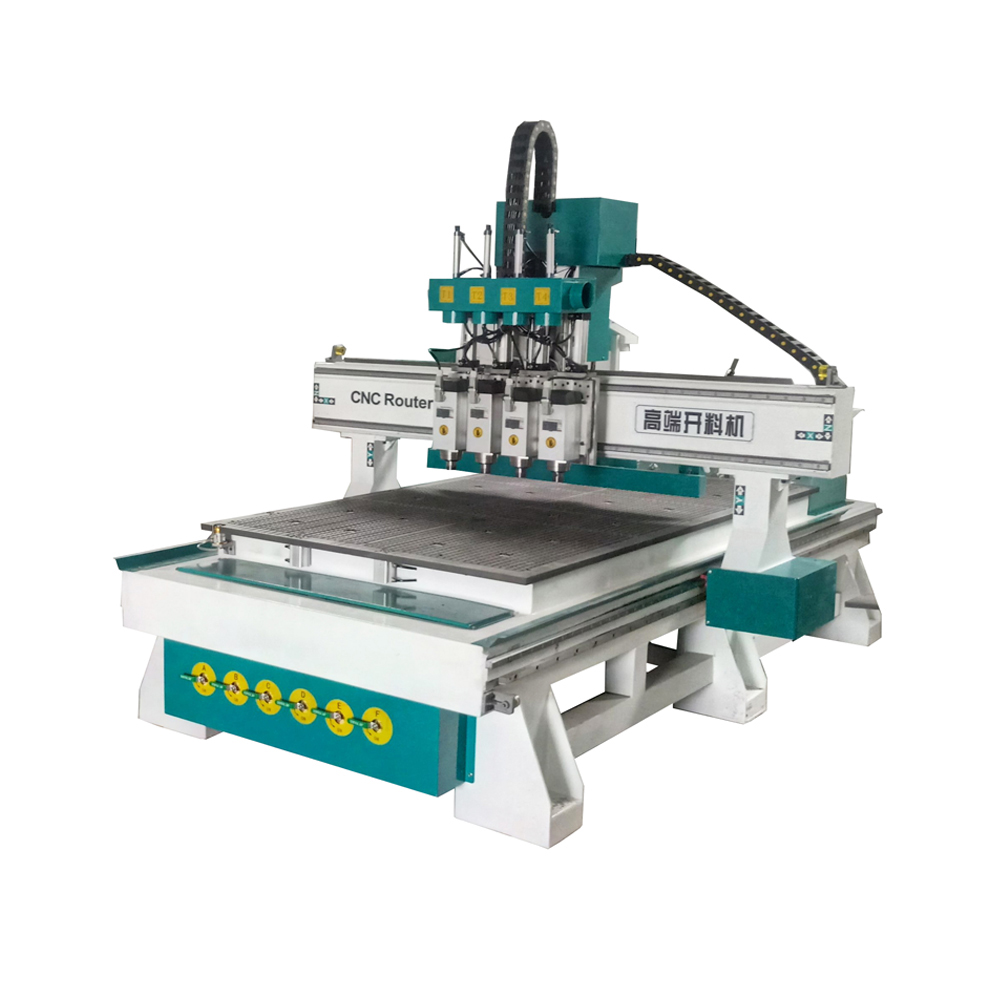

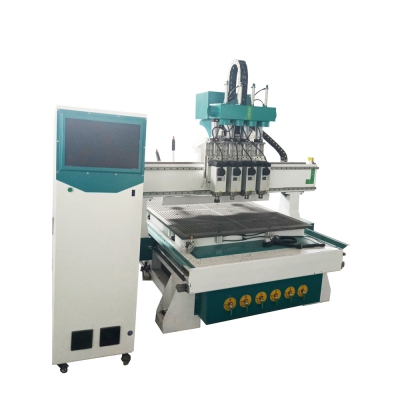

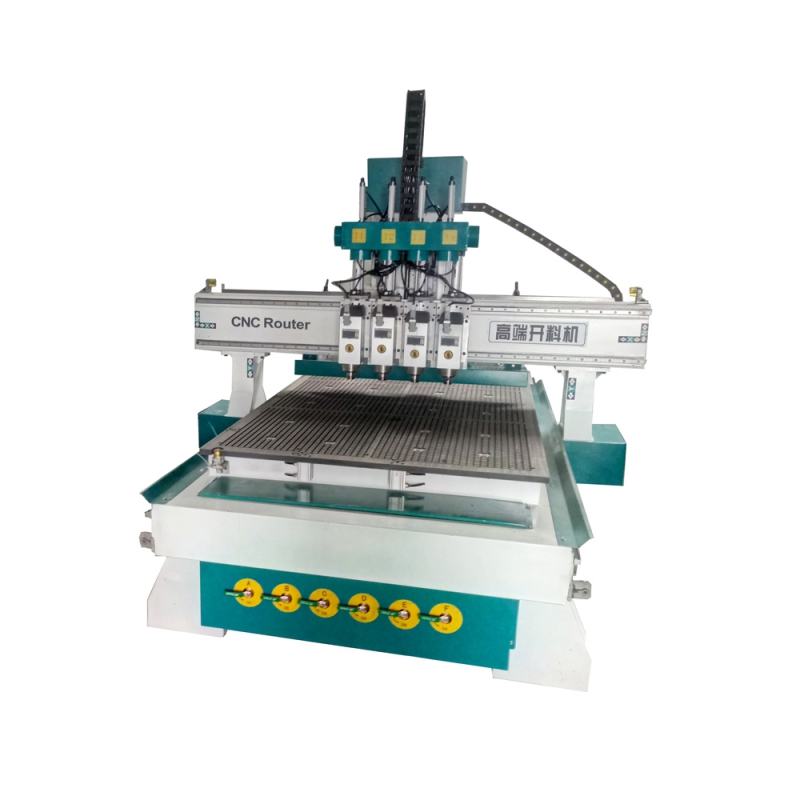

Wood cnc router DS-1325STC

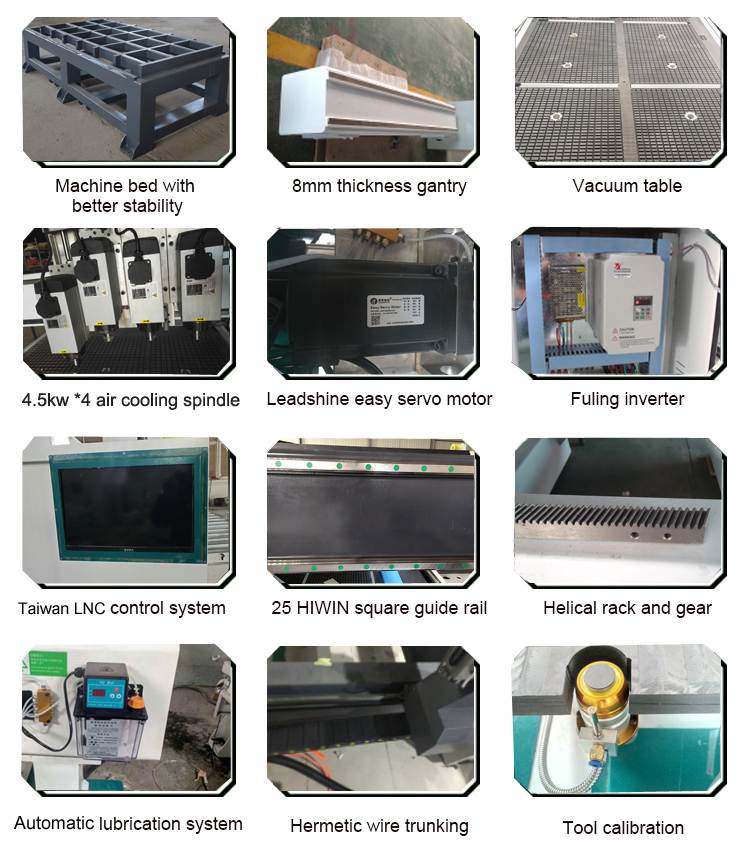

  • Working area: 1300mmx2500mm
  • Spindle: 4.5kw air cooling spindlex4
  • control system: Taiwan LNC control system
  • Guide rail: Taiwan HIWIN guide rail
  • Software: Ucancam / ArtCam/TYPE3
  • Motor: Leadshine hybird servo motor
  • Machine bed: Welded with thickness steel tube
  • Transmission: XY axis helical rack pinion, Z axis ball screw
  • Table: Vacuum table
  • Working voltage: 380V/50Hz, 3 phase
  • Traveling speed: 30-50m/min
  • Working speed: 25-40m/min
  • Application: cabinet door, door making
  • Inquiry

Product Description


Introduction

      This machine is main for furniture industries, such as wood door, kitchen cabinet etc. This machine is economical, suitable for simple type.

      1. Our machine bed is welded by 4-6mm steel tube, processed by the lathe machine and facing machine, ensures the stability of processing.

      2. This machine is for easy processing door. It is more higher cost effective.

      3. Two production processes, three production processes, four production processes are optional.

      4. The lines in control box all marked. It is easy to maintenance.


四工序 (3).jpg






   1.Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

   2.The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.

   3.Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.


ATC sample.jpg
